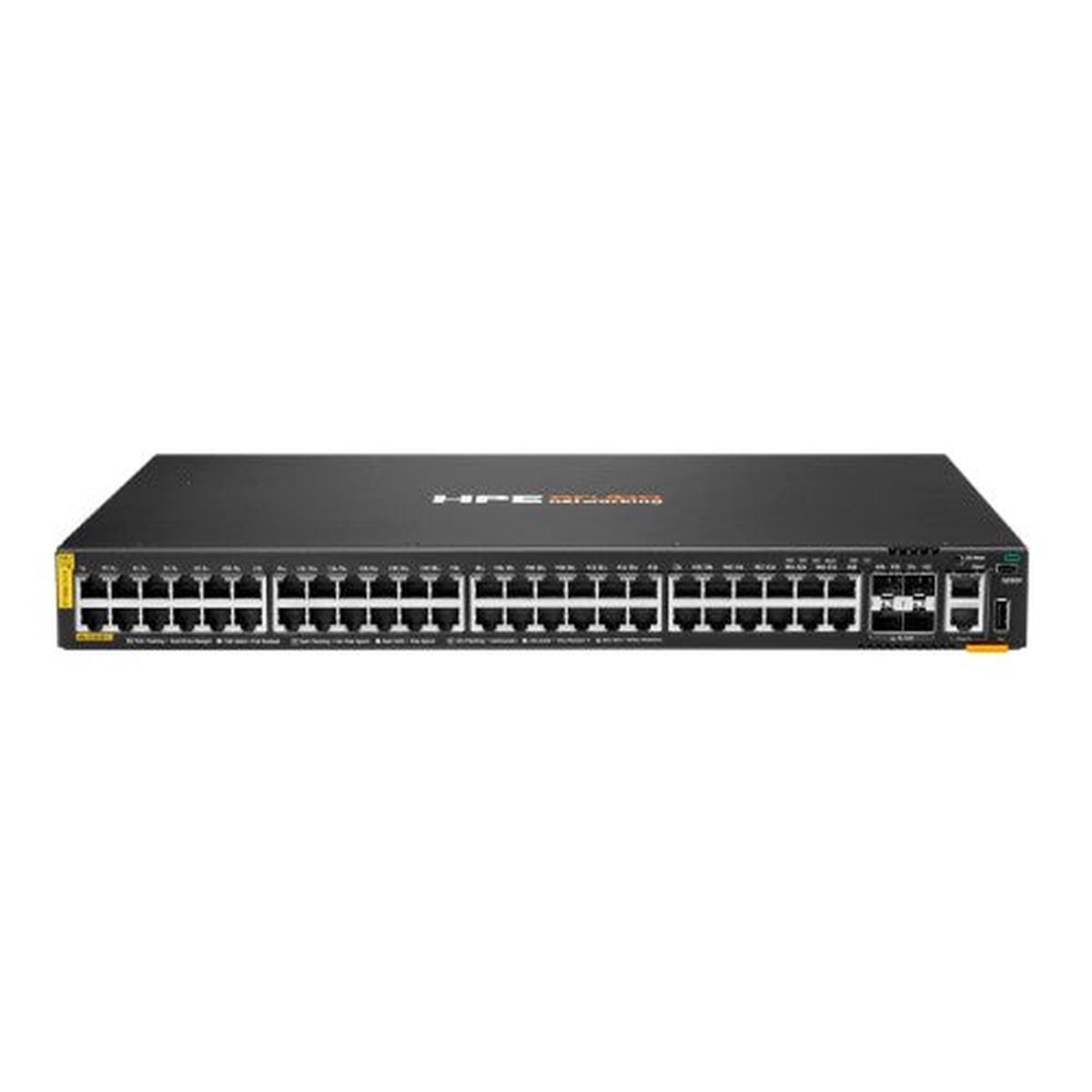

HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP 370W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/USB Type-C. MAC address table: 32768 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45/USB Type-C |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 10 km |
| Data transmission | |
| Throughput | 130.9 Mpps |
| Latency (1 Gbps) | 2.28 s |
| Latency (10 Gbps) | 1.46 s |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | OSPF, OSPFv2, OSPFv3, RIP-2, RIPng |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 8 |
| Processor frequency | 1800 MHz |
| Memory type | SDRAM / Flash |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Stackable | Yes |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 – 70 C |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 45 C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 120000″ (0 – 3048 m) |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 17.4″ (442 mm) |
| Depth | 12.9″ (327 mm) |
| Height | 1.73″ (43.9 mm) |
| Weight | 10.7 lbs (4.87 kg) |
| IPv4 & IPv6 features | |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Physical stacking (units) | 8 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | SDRAM / Flash |
| Internal memory | 8192 MB |
| Flash memory | 16384 MB |
