Smart-UPS X 1500, 1440VA, 120V, LCD, rackmount, 2U, 8x NEMA 5-15R outlets, w/SmartConnect port and network cardDescriptionIntelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS…
100% Secure Payment & Data Safety
Global Delivery & Fast Dispatch
30 Days Free Return & Exchange

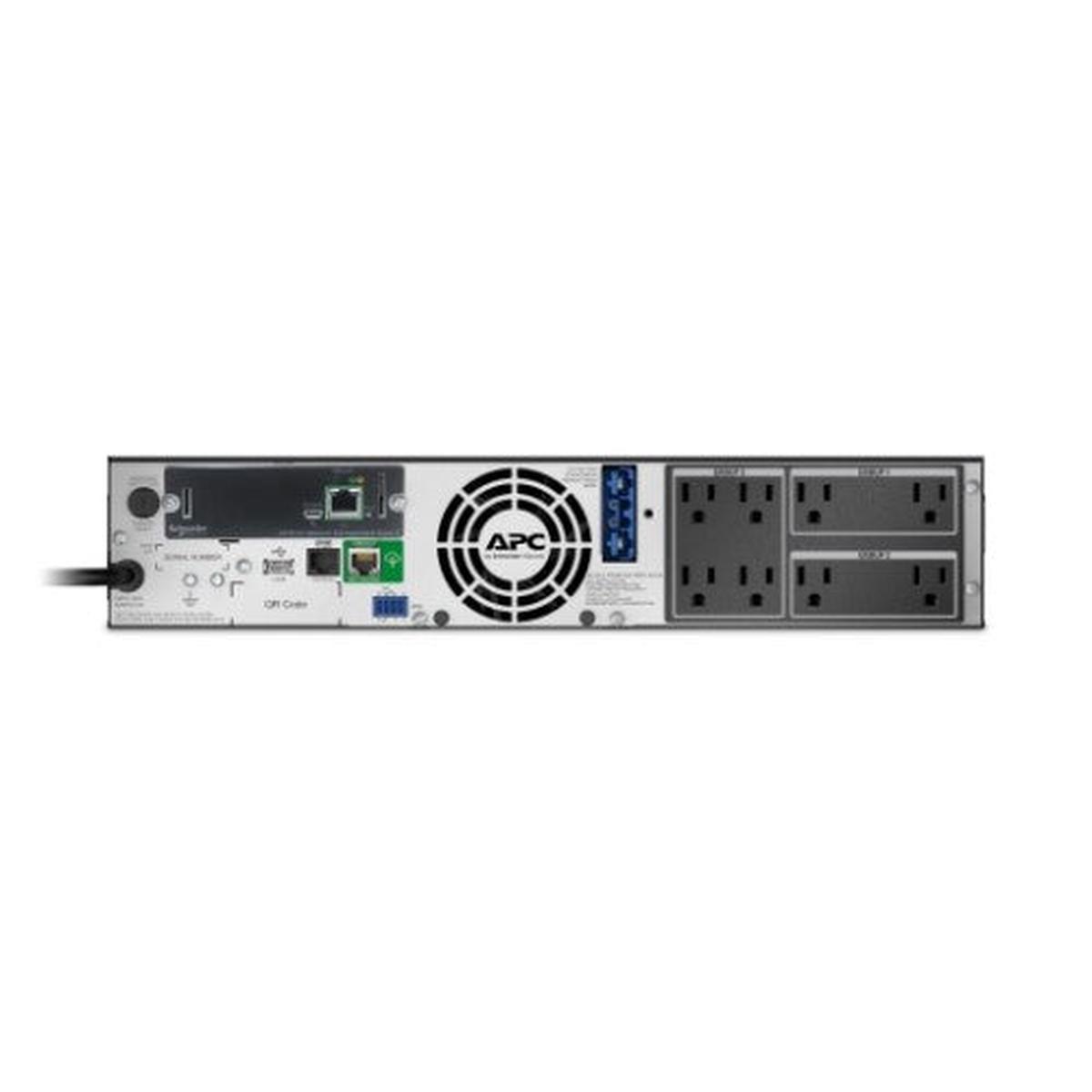

Smart-UPS X 1500, 1440VA, 120V, LCD, rackmount, 2U, 8x NEMA 5-15R outlets, w/SmartConnect port and network card
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Cat 5 Ethernet cable, Installation guide, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
| Power | |
|---|---|
| Output frequency | 50/60 Hz |
| Output power | 1350 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 600 J |
| Maximum current | 12 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 1.44 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 96.1″ (2.44 m) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port type | USB Type-B |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| Power protection features | Over current |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 1350 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 600 J |
| Maximum current | 12 A |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Over current |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Output power capacity | 1.44 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery voltage | 48 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Certification | cUL Listed, TAA compliance, UL 1778 |
| Cable length | 96.1″ (2.44 m) |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 C |
| Storage temperature (T-T) | -15 – 45 C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 118110.2″ (0 – 3000 m) |
| Non-operating altitude | 0 – 590551.2″ (0 – 15000 m) |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 23.2″ (589 mm) |
| Package depth | 24.4″ (620 mm) |
| Package height | 9.69″ (246 mm) |
| Weight | 54.7 lbs (24.8 kg) |
| Width | 17″ (432 mm) |
| Package weight | 66.1 lbs (30 kg) |
| Height | 3.5″ (89 mm) |
| Depth | 19.3″ (490 mm) |
| Packaging data | |
| Package width | 23.2″ (589 mm) |
| Package depth | 24.4″ (620 mm) |
| Package height | 9.69″ (246 mm) |
| Package weight | 66.1 lbs (30 kg) |
| Certificates | |
| Certification | cUL Listed, TAA compliance, UL 1778 |
